NDIR

  • NDIR
Thumbnail
  • Information

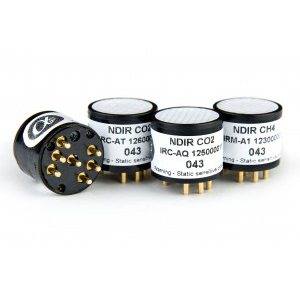

    Alphasense CO2 and Methane infrared sensors are supplied in the industry standard miniature (20mm diameter) gas sensor housing.

    Patented optics give the best signal to noise ratio of any 20mm diameter NDIR and universal linearisation constants allow easy implementation. The on-board temperature sensor allows for software compensation, including ideal gas law correction.


    CO2

    Choose between the IRC-A1 with dual channel pyroelectric detector or the IRC-AT with dual channel thermopile detector. These CO2 sensors are designed for IAQ, safety, combustion and high CO2 process control applications.
    Application notes explain linearisation, temperature compensation and circuitry.
    Both the IRC-A1 and IRC-AT cover the entire concentration range of measurement, simply implement the appropriate linearisation constants in software for your required range:
    o IAQ 0 to 5,000ppm CO2
    o Safety 0 to 5% CO2
    o Combustion 0 to 20% CO2
    o Process control 0 to 100% CO2


    Methane/ Hydrocarbons

    The IRM-AT uses a dual thermopile detector for measuring Methane and other Hydrocarbons in non-explosive environments. The plastic housing limits use to non-Ex environments up to 2.5% Methane.


    Application notes

    Download NDIR Application Notes – see application notes for full details.


    Data sheets


    FILE NAME DESCRIPTION TYPE DOWNLOAD LINK
    IRM-AT Methane Infrared, thermopile Data Sheet
    O2-G2 Infrared, thermopile Data Sheet
    O2-G1 Infrared, pyroelectric Data Sheet
